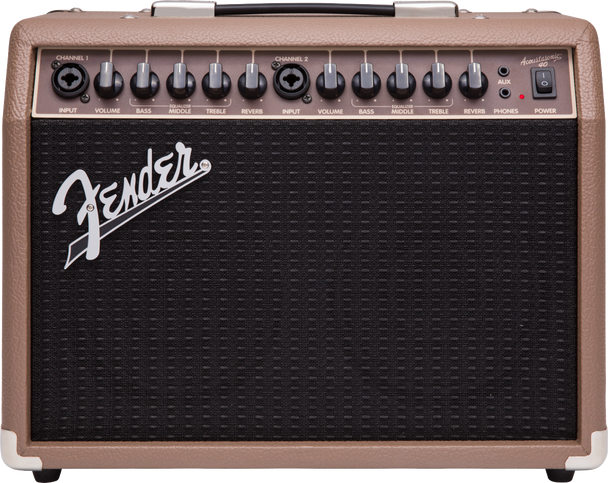

Fender Acoustasonic 40

Features:

• 6" Speaker with "Whizzer" Cone
• Built in Reverb
• XLR and 1/4" inputs

6” SPEAKER WITH “WHIZZER” CONE
For more effective high-frequency response, the Acoustasonic 40 bears the unusual distinction of being the only Fender guitar amp to use a “whizzer” cone—a small supplementary speaker cone attached to the voice coil of the amps 6” speaker.

BUILT-IN REVERB
For extra ambience, the Acoustasonic 40’s instrument channel features built-in reverb.

XLR AND ¼” INPUTS
The Acoustasonic 40’s convenient dual front-panel inputs include a standard ¼” jack for an instrument and an XLR input for a microphone.

Specifications:

ELECTRONICS
Controls
Channel 1: Volume, Bass, Mid, Treble, Reverb; Channel 2: Volume, Bass, Mid, Treble, Reverb
Channels
Two
Inputs
Two - (XLR / 1/4" combined)
Effects
Reverb
Voltage
240V AUS
Voltage Requirements
100-240 VAC, 50-60 Hz
Wattage
40 Watts
Line Out
One - XLR with Ground Lift

HARDWARE
Cabinet Material
5-Ply 5/8" Lightweight Plywood
Amplifier Covering
Brown Textured Vinyl
Grille Cloth
Black
Amplifier Jewel
Red LED
Handle
Molded Plastic Strap with Nickel-Plated Caps

SPEAKERS
Speakers
Two - 6.5" Special Design Full-Range with Whizzer Cones
Total Impedance
8 ohms

MEASUREMENTS
Height
11" (27.94 cm)
Width
15" (38 cm)
Weight
16.5 lbs (7.5 kg)

*Specifications subject to change without notice.
