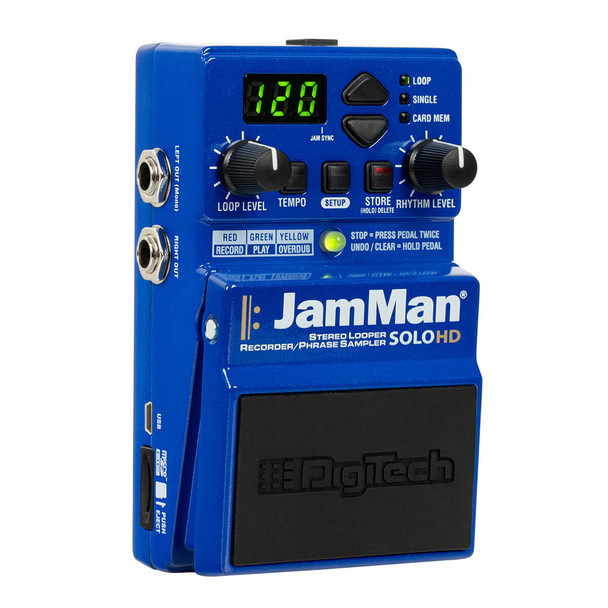

Digitech JamMan Solo HD

The JamMan Solo HD has all the same great features as the JamMan Solo XT including stereo looping, Micro SD/SDHC compatible memory card support, Auto Record, selectable Stop Modes, and the revolutionary JamSync feature which allows for syncing of multiple JamSync compatible devices. Even better, as its name suggests, the JamMan Solo HD features improved High-Definition audio performance with its Next-Gen HD A-D/D-A Audio Converter!

The JamMan Solo HD features 200 internal memory locations that can hold up to 35 minutes of loops. Installing a Micro SD/SDHC card into the memory card slot adds another 200 memory locations which can store over 32 hours of loops! (Compatible with Micro SD/SDHC cards up to 32Gb)

The JamMan Solo HD has USB connectivity for syncing to DigiTech’s free JamManager™ HD software. JamManager HD organizes and saves your loops to a computer (PC) and lets you quickly create JamLists to take to your gig. The JamMan Solo HD is the perfect stereo looper/phrase sampler for practicing, composing, and performing.

Use the JamMan Solo HD to:

• Record rhythm loops, then solo over them on the fly, completely Hands-Free™.
• Slow down or speed up the tempo of any loop without changing pitch.
• Sync multiple JamSync compatible JamMan® devices for multi-track looping capabilities.
• Seamlessly transition between recorded loops during playback.

Features:

Next-Gen HD Audio Performance
Sound better than ever with improved high definition, low-noise, low-distortion A-D/D-A audio converter.

32 Hours of Looping Time
Compact stereo looper with 35 minutes of on-board memory, PLUS up to 32 hours of looping time with a MicroSD card. (MicroSD card not included)

Professional Drum Loops
Includes 10 carefully mastered drum loops from Pat Mastelotto (King Crimson, Stick Man, Mr. Mister).

Glitch-Free Time Stretching
Adjust the tempo of your loops anyway you like, completely glitch-free.

JamSync Enabled
Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.

Specifications:

DIGITAL
A/D/A Conversion
24-bit
Sampling Frequency
44.1 kHz
Loop File Format
44.1 kHz, 16-bit (stereo), uncompressed WAV file
USB
2.0 High Speed (USB 1.1 compatible)
Connector Type
5-Pin Mini B
Max. Individual Loop Time
10 minutes (stereo)
Internal Memory Capacity
Over 35 minutes total loop time (up to 200 loops total)
External Memory Type
MicroSD/SDHC up to 32GB (optional)
External Memory Capacity
Over 32 hours (10.6MB/minute) of recording time, when using 16GB or larger MicroSDHC card (up to 200 loops total)

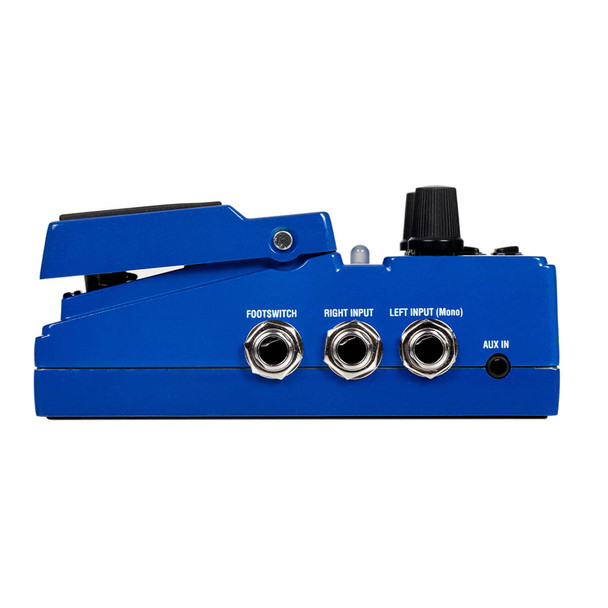

LEFT(MONO)/RIGHT INPUTS
Connector Type
1/4” Unbalanced (Tip-Sleeve)
Input Impedance
500 kΩ Mono/1 MΩ Stereo
Unity Gain Input to Output
Loop Level knob set to 12 o’clock position
Max Input Level at Unity
+4 dBu DFS
Left and Right Audio Paths
Each channel maintains analog dry path

AUX INPUT
Connector Type
1/8” (3.5mm) Stereo (Tip-Ring-Sleeve)
Input Impedance
1 MΩ
Maximum Input Level
+4 dBu DFS
Aux In Audio Path
Maintains analog dry path

FOOTSWITCH INPUT
Connector Type
1/4” Stereo (Tip-Ring-Sleeve), compatible with optional DigiTech® FS3X 3-button footswitch

LEFT(MONO)/RIGHT OUTPUTS
Connector Type
1/4” Unbalanced (Tip-Sleeve)/Balanced (Tip-Ring-Sleeve)
Output Impedance
100 Ω Unbalanced/ 200 Ω Balanced
Maximum Output Level
+4 dBu DFS
Playback Unity Gain
Loop Level knob set to 12 o’clock position

JAMSYNC INPUT/OUTPUT
Connector Type
1/8” (3.5mm) (Tip-Ring-Sleeve)

PERFORMANCE
Frequency Response
+0/-3 dB 20 Hz - 20 kHz

POWER REQUIREMENTS
Consumption
< 9 Watts
Current Draw
< 350 mA

POWER ADAPTER
Model
PS0920DC-01 (US, EU, UK, AU Plugs)
Input
100-240 VAC, 50/60Hz
Output
9 VDC 2.0 A

DIMENSIONS/WEIGHT
Dimensions
5” (L) x 3-1/8” (W) x 2-1/4” (H) / 127 mm (L) x 79.4 mm (W) x 57.2 mm (H)
Product Weight
0.75 lbs, 0.34 kg
Shipping Weight
1.6 lbs, 0.73 kg

WHAT'S IN THE BOX
1 x JamMan Solo HD
1 x Power adapter (PS0920DC-01, 9V DC)

*Specifications subject to change without notice.
